Premiere Pro 1.5 Odd cropping on the preview pane

Discussion and help related to Adobe video software goes here. e.x. Premiere, After Effects, Photoshop, etc.

Premiere Pro 1.5 Odd cropping on the preview pane

Postby Ayanefan » Fri Jul 13, 2007 5:48 pm

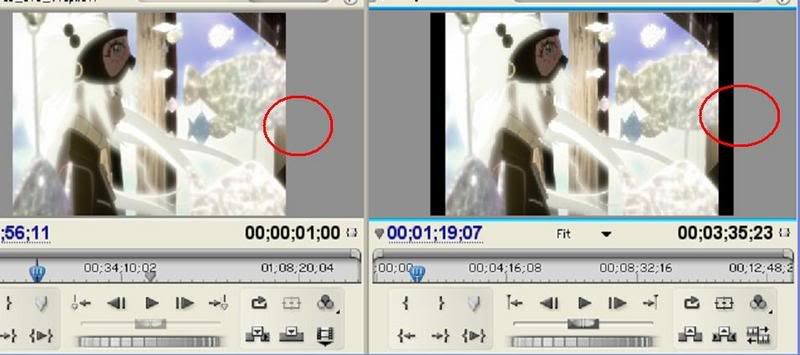

Image below shows something that I can't figure out.
Left is the input, right is the output

Project 720x480
Input file size 720x480
AVI file using FakeAVI
Avs Script:
MPEG2SOURCE("C:\AMV_Project\*hiding the song*\VOBs\Karas\Karas.d2v", cpu=6)
TFM(pp=0)
TDecimate(mode=1)
Crop(8,0,-8,-0)
LanczosResize(720,480)


Why are the sides being expanded? I see that the image is not cropped (sorry) it's the area on the output that is larger. The output also has the black border.
Export size is also 720x480.

???huh???
:?:
User avatar
Ayanefan

Joined: 24 Oct 2005

Postby Rapture** » Fri Jul 13, 2007 6:18 pm

I wonder if your problem isn't aspect ratio thing :?

As far as I know, 720*480 isn't correct 1,000 PAR. Correct PAR for 720*480 should be 0,9091(NTSC DV),or 0,9132(NTSC Video CD) - from what I see,I just checked,made FakeAVI myself,and checked PAR settings. Are you sure you didn't set your project as D1/DV PAL (1,067)?
:D I like laughter ;DD
User avatar
Rapture**

Joined: 23 Nov 2006
Location: Vilnius , Lithuania

Postby Ayanefan » Fri Jul 13, 2007 7:31 pm

Interesting, Rapture, but I'm not sure. I did a MEP piece for Moonie with 640x480 and the exact settings and I didn't get this. It does look like 50 pixels each side is being added and then resized.

My prefs for this project is:
Editing Mode: Video for Windows
Timebase: 29.97
Frame size: 720x480
Pixel ratio: 1.0
Fields: No fields (progressive)
Display format: 30fps drop-frame timecode

Scale clips to project dimensions (unchecked, checking made no difference)

For the FakeAVI, I'm actually using VFAPIConvEN, it doesn't have any settings to speak of. It opens correctly in VirtualDub without the crop.

Still puzzling.
User avatar
Ayanefan

Joined: 24 Oct 2005

Postby Rapture** » Fri Jul 13, 2007 7:52 pm

ayanefan wrote:Pixel ratio: 1.0


Try changing that to 0,9091
:D I like laughter ;DD
User avatar
Rapture**

Joined: 23 Nov 2006
Location: Vilnius , Lithuania

Postby Rapture** » Fri Jul 13, 2007 7:57 pm

Damn,sorry for double post.

And try setting Editing Mode to DV Playback,and if only Editing Mode change doesn't work,try using different combinations,just like : EM : Video For Windows+PAR : 0,9091 ; EM : DV Playback+PAR : 1.0 ; EM : DV Playback+PAR : 0,9091 ; etc.
:D I like laughter ;DD
User avatar
Rapture**

Joined: 23 Nov 2006
Location: Vilnius , Lithuania

Postby Ayanefan » Fri Jul 13, 2007 8:07 pm

Crap.

0.9 Pixel Ratio. That's what I needed.

Thanks Rapture. That'll teach me to screw around with non 640x480.

Crap. Now, I can't change the settings in the project after it's started. So I'll have to figure out how to get the best avisynth script to fix it.
User avatar
Ayanefan

Joined: 24 Oct 2005

Postby Rapture** » Sat Jul 14, 2007 4:53 am

Then if you want to continue your stuff,save it as lossless,crop out borders,and resize it back to 720*480,start a new project with 720*480(0,9091 PAR),and throw in your footage.
:D I like laughter ;DD
User avatar
Rapture**

Joined: 23 Nov 2006
Location: Vilnius , Lithuania

Postby -Reda- » Sun Jul 15, 2007 12:14 am

And isn't Karas anamorphic widescreen? Shouldn't that be in 848 by 480 instead of 720 by 480?
User avatar
-Reda-

Joined: 13 Feb 2007
Location: Pomeroy, PA
Status: Pretentious

Postby Purge » Sun Jul 15, 2007 2:03 am

N0OB wrote:And isn't Karas anamorphic widescreen? Shouldn't that be in 848 by 480 instead of 720 by 480?


theres nothing wrong with editing in 720x480 resolution. you can fix up display ratios after.
User avatar
Purge

Joined: 10 Oct 2005
Location: Under Aus

Postby Scintilla » Sun Jul 15, 2007 10:26 pm

ayanefan wrote:Crap. Now, I can't change the settings in the project after it's started. So I'll have to figure out how to get the best avisynth script to fix it.

You can, however, import your old project into a <i>new</i> project that <i>does</i> have the proper settings.
:pizza: :pizza: Image :pizza: :pizza:
User avatar
Scintilla
(for EXTREME)

Joined: 31 Mar 2003
Location: New Jersey
Status: Quo

Postby Ayanefan » Tue Jul 17, 2007 9:22 pm

Scintilla wrote:
ayanefan wrote:Crap. Now, I can't change the settings in the project after it's started. So I'll have to figure out how to get the best avisynth script to fix it.

You can, however, import your old project into a <i>new</i> project that <i>does</i> have the proper settings.


N00b, Purge, Scintilla, Rapture** - Thank you all for your input, I've made quite the mess of the initial video and, yes, I made a BIG mistake with the A/R. I think I've fixed most of the issues with it and will be putting the video out tonight or tomorrow AM.

Next time, I'll be more careful and I have learned much with this and all your input.
User avatar
Ayanefan

Joined: 24 Oct 2005

Postby Ayanefan » Tue Jul 17, 2007 9:59 pm

I think my next video will be called:

"How to ruin a perfectly good Anime in 1 easy step: Just add Ayanefan"

Please forgive the obvious quality issues upon release.
User avatar
Ayanefan

Joined: 24 Oct 2005

Postby Ayanefan » Wed Jul 18, 2007 8:11 am

Ok, here is how I was going to do my "Test Environment" from the office. This is something we use here for virtualisation and works really well. Here are the basic steps, if you want more detail I'd have to try or you can check the ubuntu forums.

1: Install VMPlayer on your Ubuntu
2: Create a VMX script to install a Virtual Windows XP using this link:
http://www.easyvmx.com/easyvmx.shtml
3: Enter the parameters and save the file
4: Pop in a Windows XP cd in your compy (still under Ubuntu)
5: Start VMPlayer and run the VMX script from steps 2 and 3.
6: This will load up the virtual machine and then access the hard drive and install Windows XP. This will be an OS load so it has the same licensing stipulations as a normal install.
7: Once it is installed and running, enjoy loading your favorite Windows applications under the new Virtual maching.

The nice thing about this, is you can save the folder that you created the Virtual Machine and move it to another computer and run it from there (as long as the hardware is pretty much the same, when windows loads from VMplayer it will be looking for hardware and such.

I will try this again on my system and see how it goes. Now that I finished my AMV I have more time on my hands.
User avatar
Ayanefan

Joined: 24 Oct 2005

Postby Ayanefan » Wed Jul 18, 2007 8:12 am

ROLF!!!! Posted in wrong thread!!!
User avatar
Ayanefan

Joined: 24 Oct 2005
